Wooting 80HE - The 80% Rapid Trigger Keyboard
Wooting 80HE
Layout: ANSI
What's Included:
- Wooting 80HE (ANSI)
- Just Black PBT Pre-installed
- Braided USB Cable C to C
- USB C to A Dongle
- Black PCR ABS Plastic Case or Ghost PCR ABS Plastic Case
Meet the 80HE
Everything you'd expect from Wooting in an 80% layout.
We’ve applied everything we’ve learned so far, making the 80HE our most complete keyboard yet. With several new elements improving the sound, adding new features that enhance your gaming performance and implementing true 8kHz polling to make it our fastest keyboard to date.
Analog Input Unleashed
Full range switch motion.
The Wooting 80HE detects full switch motion with 0.1mm accuracy from start to end. Every single key outputs an analog signal that can be used for numerous features that enhance your typing and gaming experience.
There is no compromise to be made in what a regular ol’ keyboard might have to offer. Welcome to the future.
True 8kHz Polling Rate
0.125ms Latency.
The 80HE supports up to 8kHz USB polling while also scanning every analog key position at that same rate, providing you with a True 8kHz polling experience. This lowers your keyboard latency to only 0.125ms.
Adjustable Actuation
A pretty "sensitive" subject.
Eliminate the slowest element in input latency — the initial key press travel before key activation. You have full control over your actuation point from 0.1 to 4.0mm.
Configurable per key in 0.1mm steps, you can customise each key towards your playstyle.
Rapid Trigger
Unmatched performance.
Eliminate the second slowest element in input latency — return key press travel before key deactivation. Rapid Trigger dynamically changes the actuation and deactivation point. Your keys will activate when you intend to press them and deactivate when you intend to let go.
You can repeat a key press mid motion without needing to surpass a fixed reset or actuation point for rapid presses.
Rappy Snappy
We first brought you Rapid Trigger, now we bring you Rappy Snappy pat. pending.
Rappy Snappy monitors at least 2 selected keys and activates the key pressed the furthest. When combined with Rapid Trigger, it'll compare the keys only when in an active state. Allowing pre-pressing and faster activation on opposite key release. When both are active at the same depth, it'll resort to your selected SOCD resolution. This enhances your (counter) strafing, bunny hopping, and block/parry/combo timing in various games.

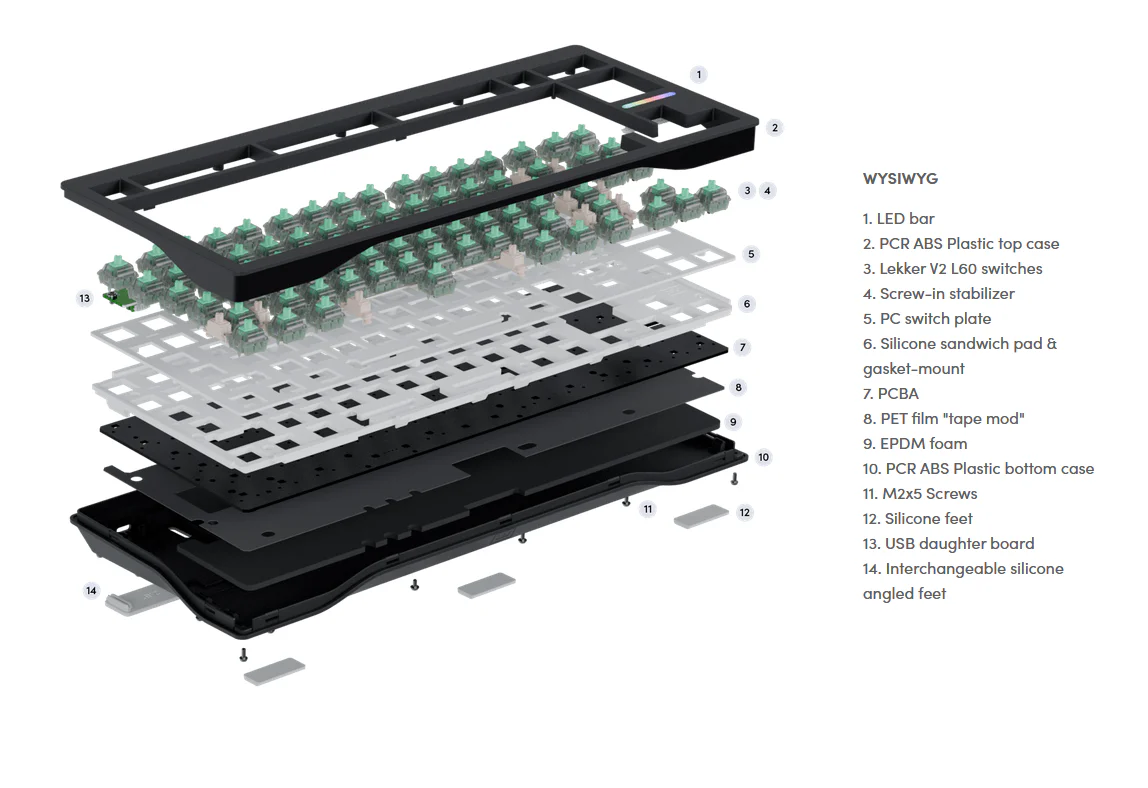

Technical Specifications
Switches
Lekker L60 V2
Keycaps
PBT, ABS and Dye sub options available
Case
PCR ABS or Zinc alloy
Stabilizers
Screw-in stabilizer
Switch plate
White polycarbonate (PC) plate
Sandwich pad
Silicone
PCBA
Wooting 80HE
Cable
2 meter USB-C to C nylon braided cable
Dimensions
346 x 142mm | 13.6 x 5.6 inch
19.4mm (H) front case height, no keycap
28.4mm (H) front height with OEM keycap
Weight
PCR ABS: 790 grams
Zinc alloy: 2160 grams
Compatibility
Switches
Lekker switches, Gateron KS-20 switches
Stabilizers
Screw-in stabilizer
Case
Top & bottom case (gasket mount)
What is inside the box
1x Wooting 80HE
1x Switch & keycap puller
3x Spare L60 switches | 1x Spare L45 Switch
1x USB cable C to C
1x USB C to A dongle
2x 6 degree foot
2x 10 degree foot
4x M2x5 Spare screws
7x Additional keycaps: Home, End, Scrl Lk, A1, A2, A3, Wooting logo key
1x Post card <3
